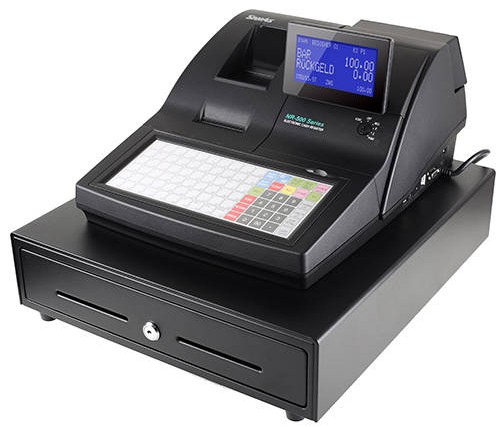

SAM4s NR-510B Cash Register:
The SAM4s NR-510B cash register is a reliable easy to use Electronic Cash Register, features Wide Multi Line Graphic Display, 16 Char. x 2 Line LCD Rear Display, Easy Data Back up, Restore and Report with single station Electronic Journal Printer. For smaller hospitality businesses have a look at the SAM4s ER-180
The SAM4s NR-510B cash register features:
– Support Non-Alphabetic Language.
– 90 key flat keyboard
– 1-station Thermal Printer.
– 1000 PLUs with 60 departments
– Tax Calculation.
– Euro Currency Conversion.
– Electronic Journal.
– Daily or Periodic Reporting.
– Clerk Management / Table Management.
– Graphic Logo Print.
– F/W Update with PC / SD Card.
– PC Utility Ethernet / USB / Serial.
– 4 Bill & 8 Coin Slots.
– Mid range ECR for Non-Fiscal Market
SPEED = 70mm/sec (18 lines/sec)
PAPER WIDTH = 57.5mm (1EA)
PAPER END SENSOR = YES
PAPER WIDTH = 57.5mm (1EA)
PAPER END SENSOR = YES
DISPLAY:
OPERATOR = 192 x 64 Graphic LCD

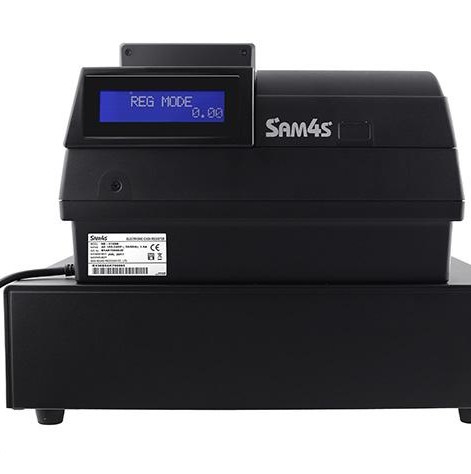

CUSTOMER = 16 Character x 2 Lines LCD

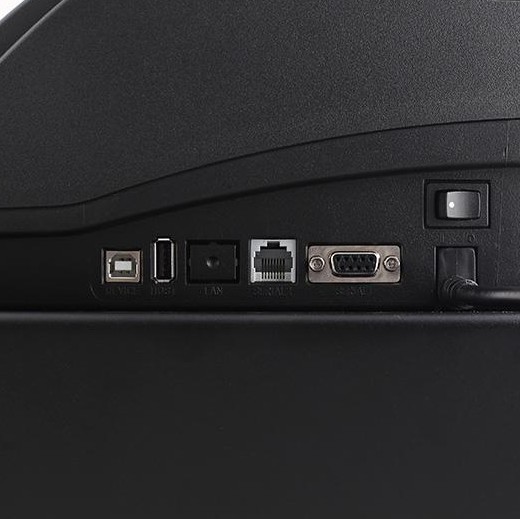

INTERFACE:
SERIAL (RS-232C) = 3 Ports (RJ45 x 1, D/SUB 9Pin x 1, Extendable x 1)
USB = Host: 1 Port (Mass Storage/Scanner) Device: 1 Port (PC) (Host / Device Selectable)
NETWORK = TCP/IP (10/100 Mbps)
SD CARD = SDHC Compatible
DRAWER PORT = 1 Port
APPEARANCE:
DIMENSION: (WxDxH mm) = 400(W) x 450(L) x 266(H)
BOX: 510 x 550 x 360 mm
WEIGHT: Kg = Approx. 13kg
POWER = AC 100~240V/50~60Hz
MEMORY:
Program = 2 MB FLASH (CPU Internal)
Data = 4MB SRAM
Ext. (Opt.) = 4Mbit SRAM (Total 8Mbit)
Data Storage = 60 Days
PERIPHERAL:
Operator Key, Scanner(Serial/USB), Remote Printer, Slip Printer, kitchen Printer, Scale, Pole Display, EFT POS Terminal.
ENVIRONMENT CONDITION:
Temperature = -5 ~ 45°C (23~113℉)
Humidity = 30~80%RH
SOFTWARE:
Keyboard Departments = 12 / 60
PLU’s = 1000(Max.8000)
Group = 20(Max.99)
Clerk = 10(Max.99)
TAX = VAT, ADD ON, TAX TABLE
Electronic Journal = YES (SD Card)
Euro Currency Conversion = YES
Graphics Logo = YES
Daily and Periodic Reporting = YES
Table Management = YES
PLU Descr1ptors size = 24
F/W Update = PC/SD Card
PC Utility = Ethernet/Serial/USB
